Manufacturer:Shanghai Benehigh Pressure Co., Ltd.
Standard: ISO7866 or DOT3AL

Certificate: CE, TC, DOT3AL
Third party Inspectors: TUV, AT

Filling content: Air

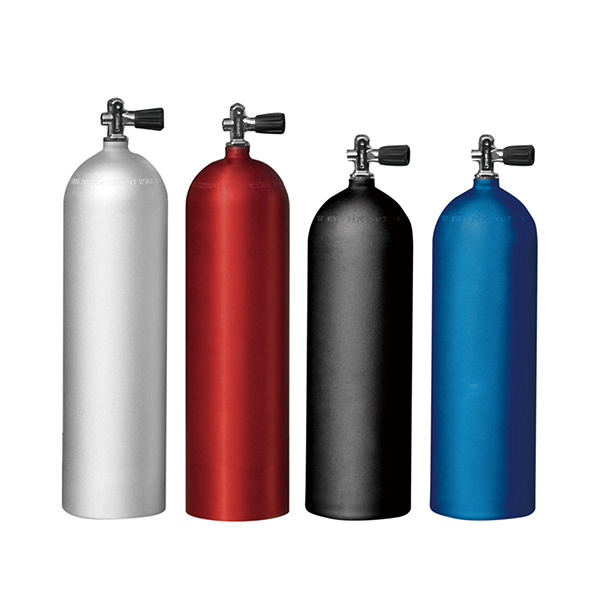

Color: Aluminum or upon requirements
Outside surface treatment: Transparent painting or supernatural finish

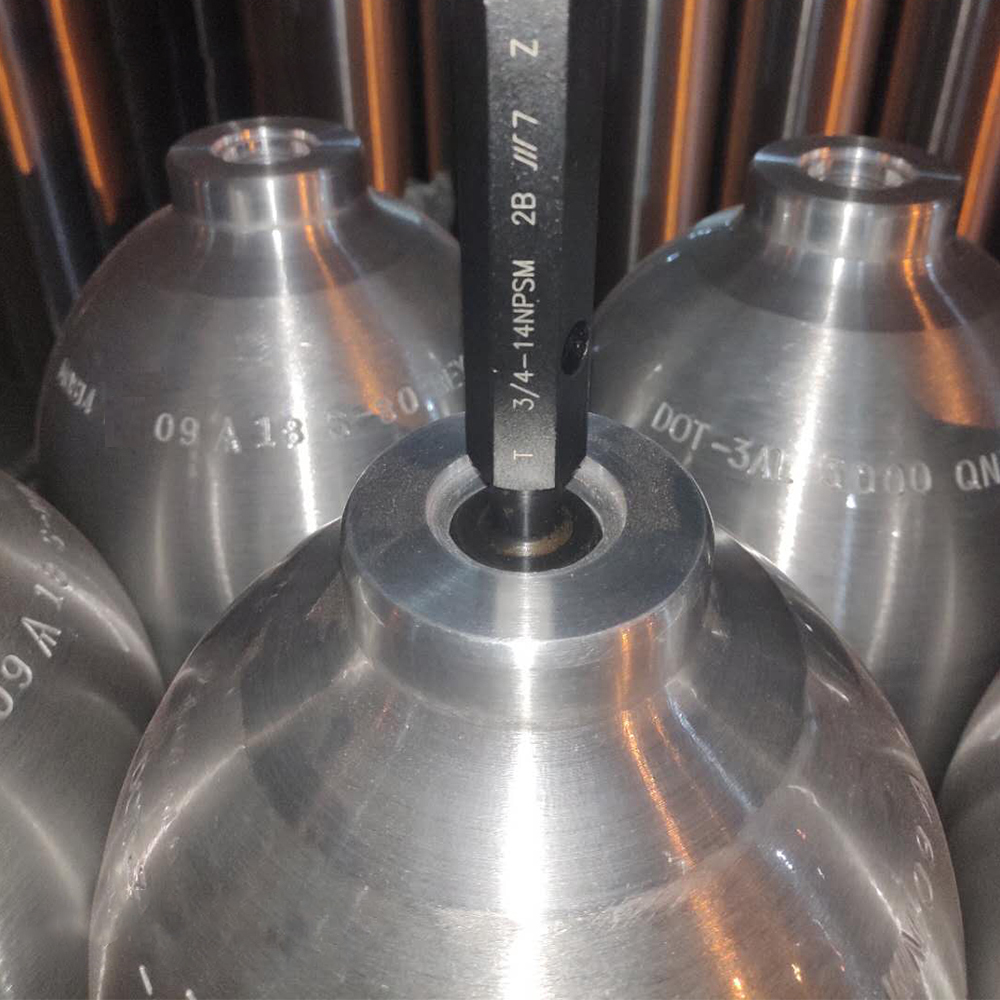

Thread: G3/4 or as request

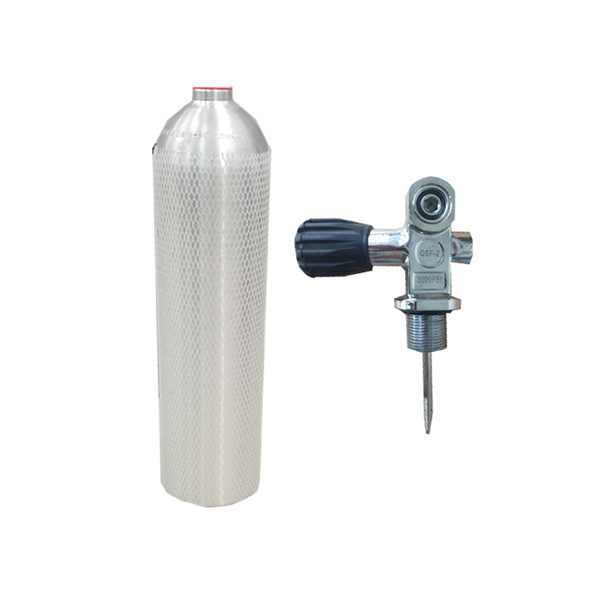

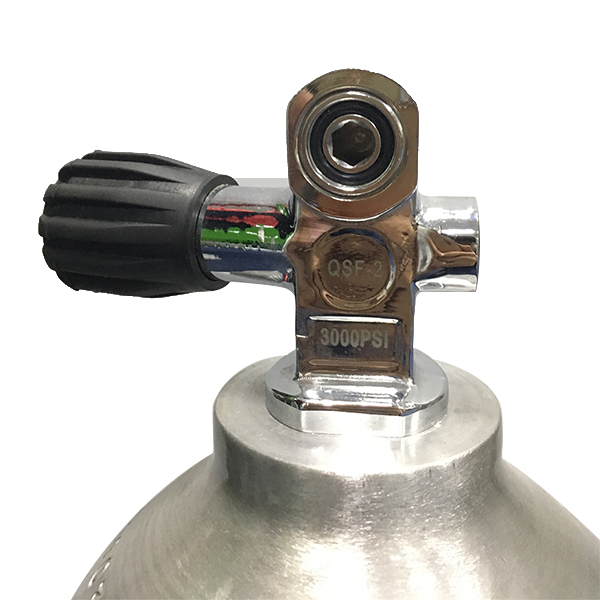

Valve: YOKE valve

Form A, Form E available.

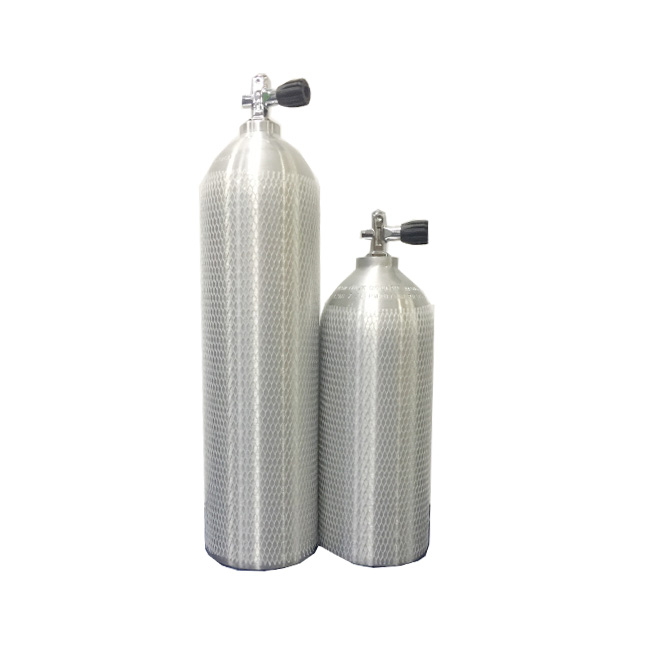

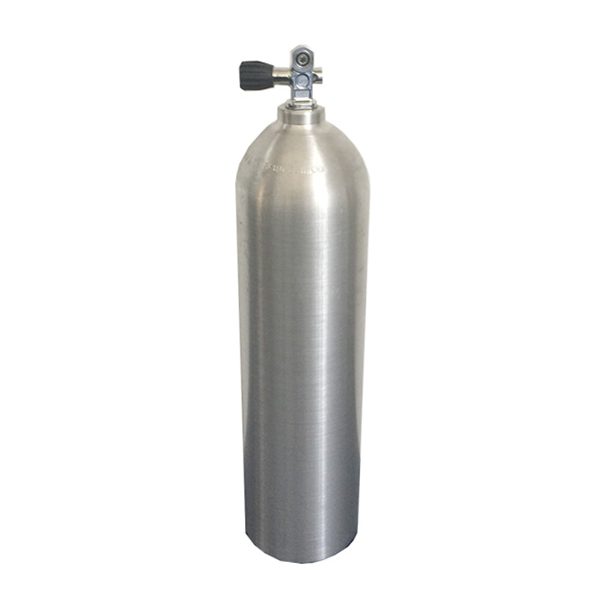

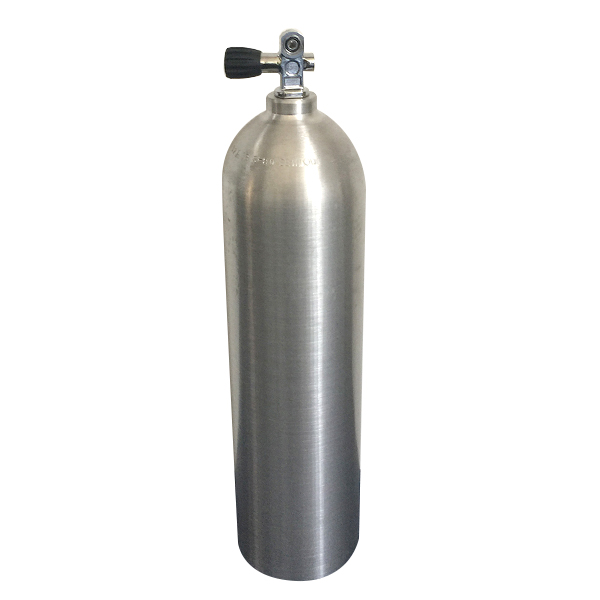

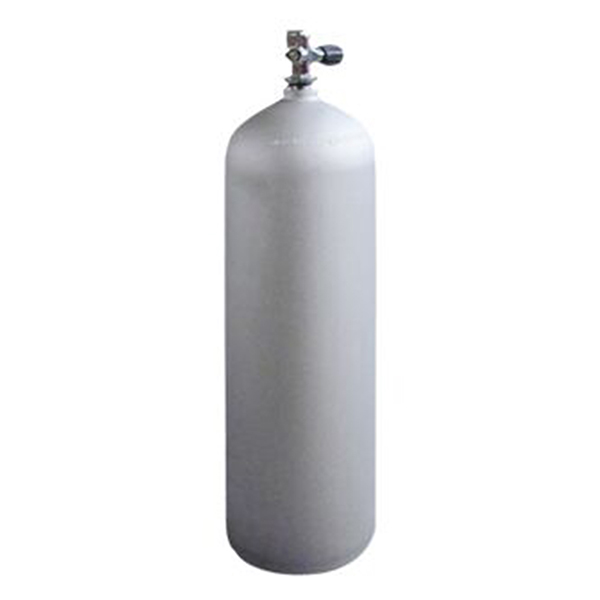

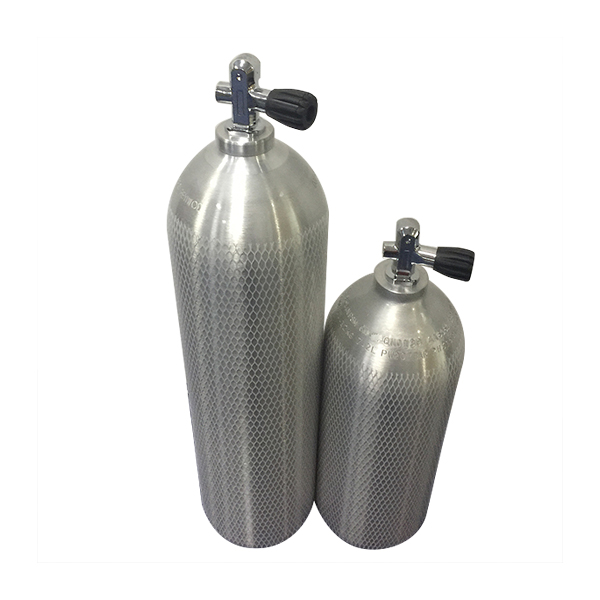

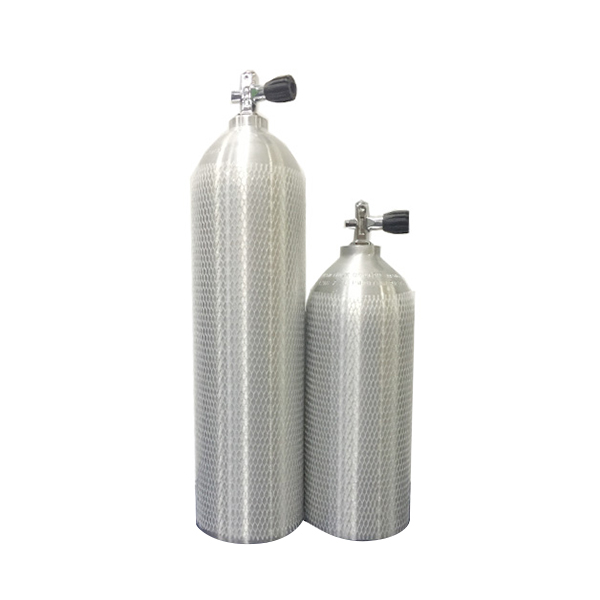

S80 aluminum diver tank for diver overview

Volume(L)

 11.1L(24.5Lbs)

Material

AA6061

Outer Dia(mm)

 184mm

Height without valve

 658mm

Working pressure

3000psi

Weight without vale

14.2kg

Test pressure

4500psi

Standard

DOT3AL


Compared with conventional respirators, we use aluminium or aluminium composite cylinders instead of steel ones, with weight reduction of 40%-70%, so they are more preferable for people with breathing problems.

Gas cylinder scuba diving tanks introduction:

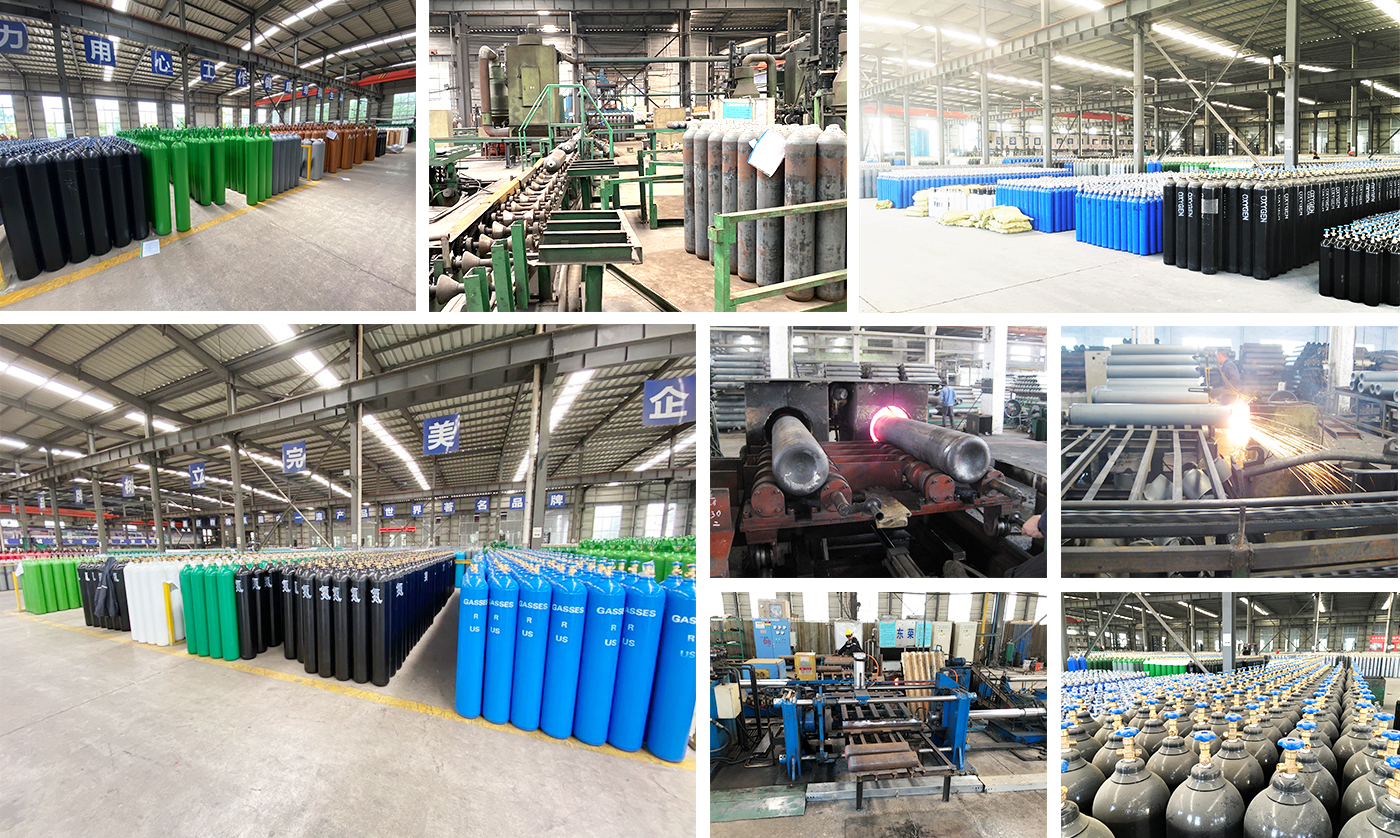

Gas cylinder liners are made of high quality 6061 aluminium alloy materials. The manufacturing procedure includes punching, drawing, heat treatment, CNC flow forming spinning, inner surface treatment, etc. The wall thickness is uniform with little difference. The shape of shoulder and base are produced with high precision and consistency.
1. 15-year lifetime warranty;
2. 5-year requalification period; 15-year life;
3. Smooth, high quality, easy-care exterior finish.




 Quality & safety

1. Shanghai BENE High Pressure Container Co., Ltd has established the quality control system himself to providing high-quality cylinder to clients.

2. Each cylinder before mass production has to pass raw material tested at qualified lab approved by third party like TUV or AT.

3. Every batch of cylinders (200pcs per match) are manufacture and tested under supervision of local special equipment inspection and research institute and then issued batch test report.

4. Each finished cylinder will be tested before ship to client.

5. BYIWOD are honored to supply high-quality products to worldwide.
