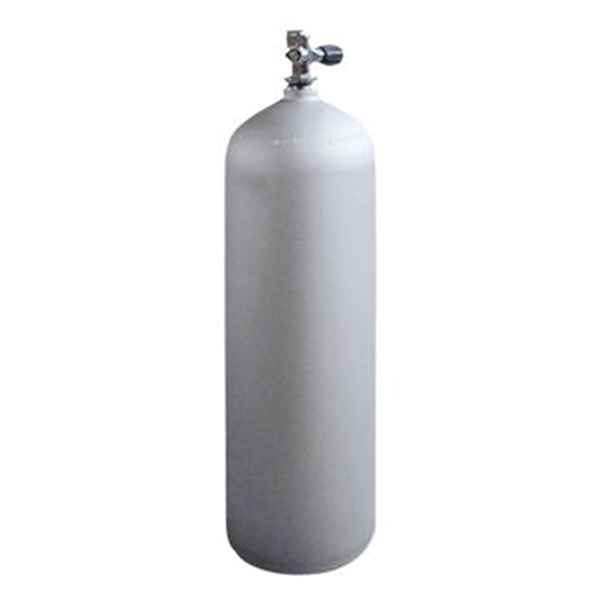

DOT3AL Specification:

Part

Water capacity

Diameter

Length

Cylinder Weight

Capacity

liters

mm

mm

kgs

cu ft

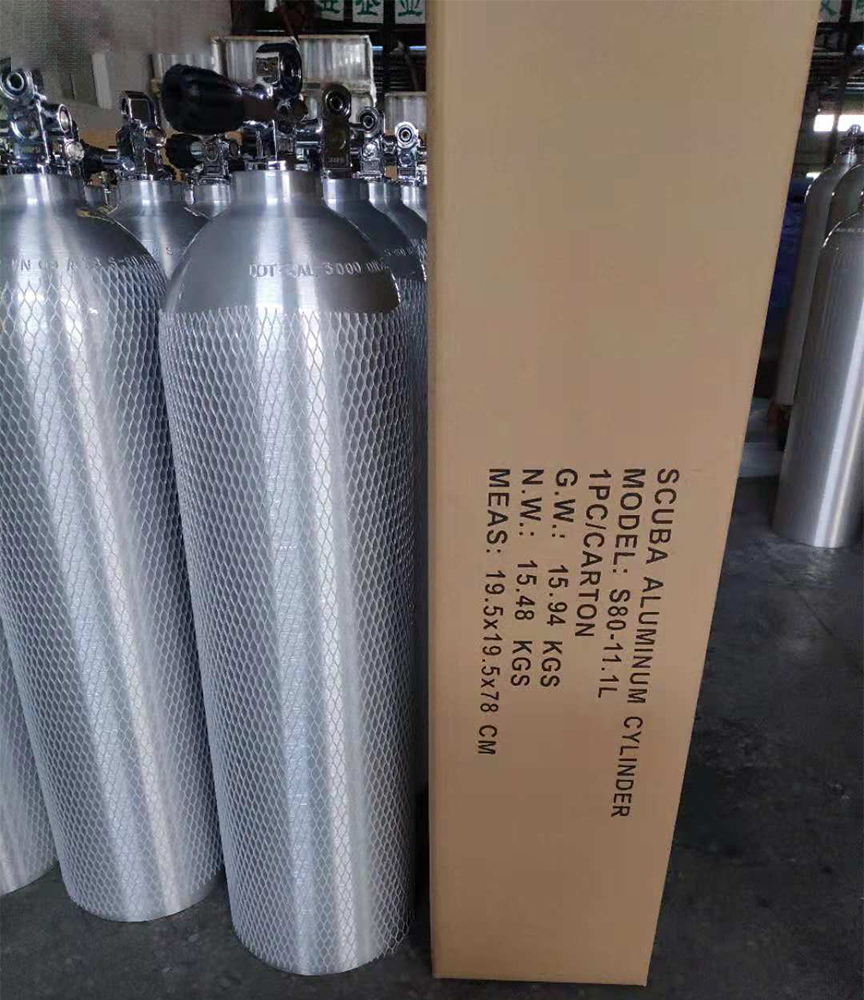

S80

11.1

184

658

14.2

S63

9

184

551

12.2

S53

7.6

184

488

11.4

S50

7.2

175

493

9.9

S45

6.4

175

450

9.2

S40

5.8

133

645

7.3

S30

4.3

133

505

6.2

S19

2.7

111

450

3.5

S13

1.9

111

325

2.6

S6

0.9

81

274

1.2



We also supply ISO7866 Approved & CE Marked diving TANK

Specification: – DOT-3AL &  ISO7866 are available
Alloy: – Manufactured from high strength aluminum alloy 6061

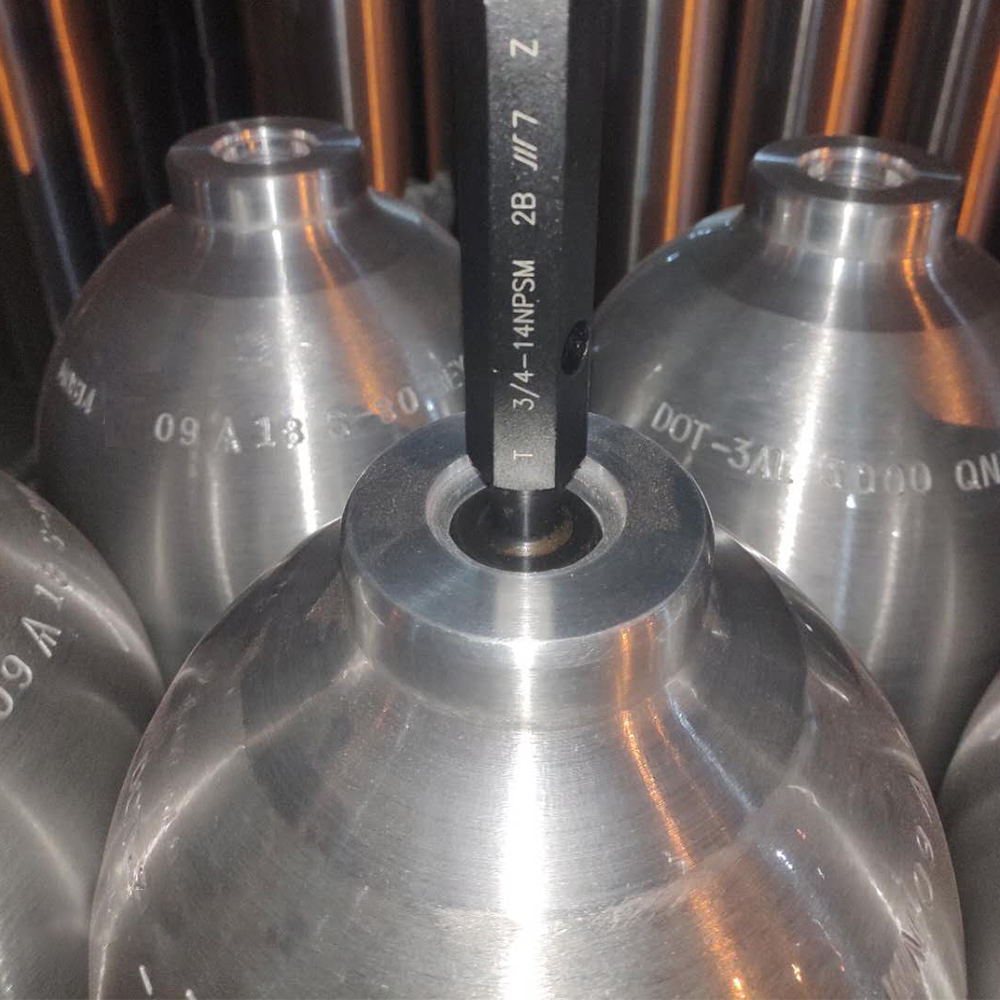

Threads: -Standard 3/4-14 NPSM, M25 – Other thread sizes available upon request
Markings: – As required by specification – Additional markings available upon request

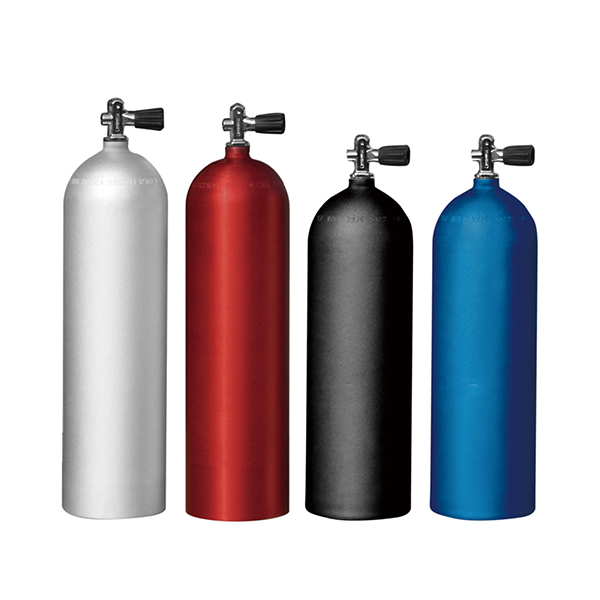

Finish: – Shot blasted, fully brushed and powder coat finishes available
Graphics: – Logos or labels in silkscreen or available upon request.

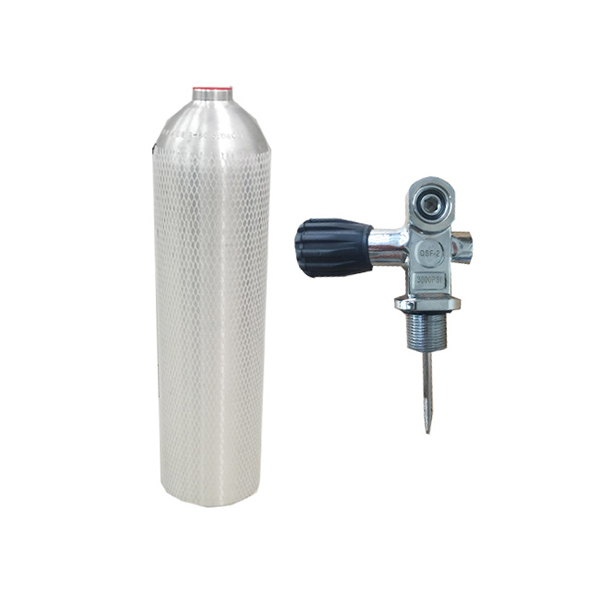

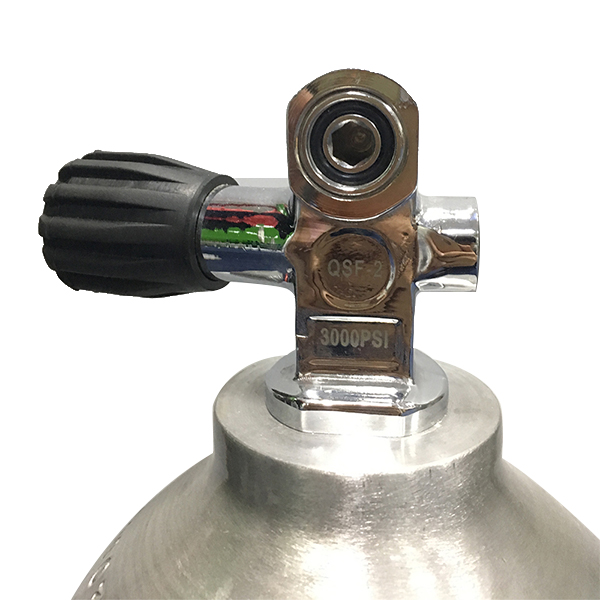

Accessories: – Valves installed upon request


OUR TANKS CHARACTER

· All diver cylinders with Competitive price

· All diver cylinders are produced from high quality raw materials

· On-site DOT (IIA) Inspections – dimensional, visual, hydrostatic, tensile & burst testing

· Serialization – complete trace ability of cylinder production batch, test reports and raw material

· Personalized customer support – technical inquiries, new product development, logistics

· Customizable colors, labels and graphics



Quality & safety

1. Shanghai BENE High Pressure Container Co., Ltd has established the quality control system himself to providing high-quality cylinder to clients.

2. Each cylinder before mass production has to pass raw material tested at qualified lab approved by third party like TUV or AT.

3. Every batch of cylinders (200pcs per match) are manufacture and tested under supervision of local special equipment inspection and research institute and then issued batch test report.

4. Each finished cylinder will be tested before ship to client.

5. BYIWOD are honored to supply high-quality products to worldwide.
