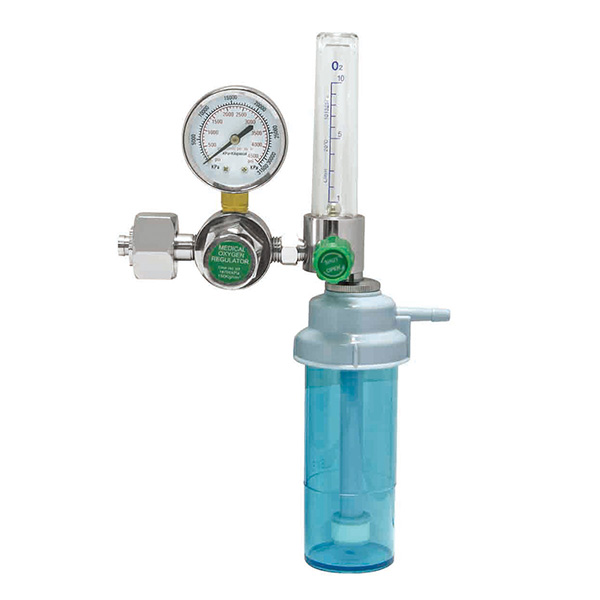

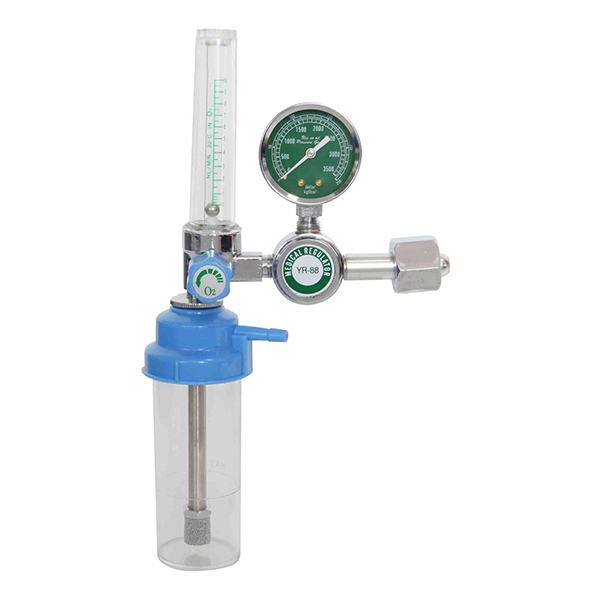

Medical oxygen regulator is used for oxygen breathing in hospital or home and meant to be connected on high pressure medical gas cylinder to decrease the outlet pressure and supply a stable low pressure for use. The pressure gauge indicates the pressure level of the gas cylinder.
Specification:
ITEM NAME: CGA870 Medical Oxygen Regulator
MATERIAL: Aluminum Body With Brass Core
INLET CONNECTOR: CGA870
OUTLET CONNECTOR: Barb, Diss
INLET PRESSURE: 0-3000PSI
OUTLET PRESSURE: 50PSI
FLOW RATE:0-4, 0-8, 0-15,0-25 LPM
GAS TYPE:OXYGEN
FLOWS:0-4L/MIN,12 LEVELS ADJUSTMENT 0,1/32.1/16.1/8.1/4,1/2.3/4,1.01.5,2.0,4.0
INPUT PRESSURE:15MPA
OUTPUT THREAD:8MM
PLUG DIAMETER:13MM OR 14MM
HUMIDIFIER CAPACITY:200ML
Oxygen Regulator Description:
1) The Oxygen Regulator is designed to reduce the pressure and Control the flow of oxygen from an oxygen cylinder or tank
2) Oxygen Flow Control Regulator is a pressure-reducing device,Which lowers the oxygen pressure from a cylinder to levels,Which can be safety used by the patient.Oxygen Regulators are intended for he administration of oxygen to patients Who need increased oxygen levels to improve their breathing conditions
3) This Oxygen Regulator uses an advanced,patented intelliflo disc to regulate oxygen flow down to 1/32 LPM with very tight tolerances.It features a brass core,skidproof knob and body that won’t peel flake or wear off.All metal anodized Aluminum construction is more durable and will not rust,Plus the gauge protector helps prevent damage.
Below specification are all for standard sizes we can supply, details please send us inquiry.
Gas regulator,oxygen regulator,medical regulator, gas pressure regulator
Model | Service Medium | Max. entrance pressure | Max. discharge pressrue | Inlet Connection | Outer Connection | |
YQY-740L | Oxygen | 15Mpa | 0.20.3Mpa | G5/8"-RH(F) | M12×1 -RH(F) | |
YQY-740Lc | Oxygen | 15Mpa | 0.20.3Mpa | G5/8"-RH(M) | M12×1 -RH(M) | |
YQY-740LE | Oxygen | 15Mpa | 0.20.3Mpa | G5/8"-RH(M) | M12×1 -RH(M) | |
YQY-740LS | Oxygen | 15Mpa | 0.20.3Mpa | G5/8"-RH(F) | M12×1 -RH(F) | |
YQY-740LB | Oxygen | 15Mpa | 0.20.3Mpa | G5/8"-RH(M) | M12×1 -RH(M) | |
YQY-740LW1 | Oxygen | 15Mpa | 0.20.3Mpa | G5/8"-RH(M) | M12×1 -RH(M) | |
YQY-740LW2 | Oxygen | 15Mpa | 0.20.3Mpa | G5/8"-RH(M) | M12×1 -RH(M) | |
YQY-740LW3 | Oxygen | 15Mpa | 0.20.3Mpa | G5/8"-RH(F) | M12×1 -RH(M) | |
YQY- | Oxygen | 15Mpa | 0.20.3Mpa | G5/8"-RH(M) | M12×1 -RH(M) | |
740LW6 | ||||||
Type | Medium | Inlet Pressure Mpa | Adjusting Range | Inlet Connection | Inlet Connection | |
YQ-10L | O2 | 0.20.3 | 0.20.3 | M10×1 | nasal oxygen cannula | |
YQY-740Z | O2 | 15 | 0.20.3 | PZ19.2 | nasal oxygen cannula | |
YQY-740Z1 | O2 | 15 | 0.20.3 | PZ27.8 | nasal oxygen cannula | |
YQY-740H | O2 | 15 | 0.20.3 | G5/8 | nasal oxygen cannula | |
Type | Nominal Diameter(mm) | Nominal Water Capacity(L) | Service Pressure(Mpa) | Filling Gas(L) | material | |
GY108-1.4 | Oxygen | 15Mpa | 0.20.3Mpa | G5/8"-RH(F) | M12×1 -RH(M) | |
GY108-2 | Oxygen | 15Mpa | 0.20.3Mpa | G5/8"-RH(F) | M12×2 -RH(M) | |
GY108-3 | Oxygen | 15Mpa | 0.20.3Mpa | G5/8"-RH(F) | M12×3 -RH(M) | |
GY140-4 | Oxygen | 15Mpa | 0.20.3Mpa | G5/8"-RH(F) | M12×4 -RH(M) | |
GY159-10 | Oxygen | 15Mpa | 0.20.3Mpa | G5/8"-RH(F) | M12×5 -RH(M) | |
Model | Service Medium | Max Inlet Pressure | Adjusting Pressure | Nominal Flow Rate | Inlet Connection | Outer Connection |
YQT-01A | Carbon dioxide | 15Mpa | 0.010.25Mpa | 5m3/h | G5/8" | M16×1.5 |
YQT-191 | Carbon dioxide | 25Mpa | 025LPMco2 | G5/8"-RH(F) | M16×1.5RH (M) | |
YQT-341 | Carbon dioxide | 15Mpa | 0.010.6Mpa | 25L/min | G5/8" | M16×1.5 |
YQT-341L | Carbon dioxide | 15Mpa | 0.30.35Mpa | 225L/min | G5/8"LH(M) | G3/8"LH(M) |
YQT-731L | Carbon dioxide | 15Mpa | 0.20.3Mpa(Setting) | 25L/min | G5/8" | M12×1 |
YQW-01A | Propane | 15Mpa | 0.010.05Mpa | 5m3/h | M22×1.5-Left | M22×1.5-Left |
Model | Service Medium | Max Inlet Pressure | Adjusting Pressure | Inlet Connection | Outer Connection | |
YQAr-731 | Argon gas | 15Mpa | 0.15Mpa (Setting) | G5/8" | M12×1 | |
YQAr-731L | Argon gas | 15Mpa | 0.15Mpa (Setting) | G5/8" | M12×1 | |
YQAr-731L1 | Argon gas | 15Mpa | 0.15Mpa (Setting) | G5/8" | M1×1 | |
YQD-01A | Nitrogen | 15Mpa | 0.10.16Mpa | G5/8" | M16×1.5 | |
YQQ-01A | Nitrogen | 15Mpa | 0.010.25Mpa | Φ28×14 Teeth/inch-left | M16×1.5-Left | |
YQA-441 | Ammonia | 3Mpa | 0.4Mpa | G1/2" | M16×1.5 | |
Model | Service Medium | Max Inlet Pressure | Adjusting Pressure | Inlet Connection | Outer Connection | |
YQY-01 | Oxygen | 15Mpa | 1.5Mpa | G5/8" | M16×1.5 | |
YQY-01A | Oxygen | 15Mpa | 0.11.25Mpa | G5/8" | M16×1.5 | |
YQY-1A | Oxygen | 15Mpa | 0.12Mpa | G5/8" | M16×1.5 | |
YQY-11 | Oxygen | 15Mpa | 0.11.6Mpa | G5/8" | G5/8" | |
YQY-370 | Oxygen | 15Mpa | 0.44Mpa | G5/8" | M16×1.5 | |
YQE-01 | Dissolved acetylene gas | 3Mpa | 0.15Mpa | G5/8" | M16×1.5 | |
YQE-01A | Dissolved acetylene gas | 3Mpa | 0.010.15Mpa | frame (flange) | M16×1.5-Left | |
YQEG-224 | Dissolved acetylene gas | 3Mpa | 0.010.15Mpa | Φ14mm | Φ14mm |
