ME-4.55L/682LITER aluminum cylinder specification

Water capacity

4.55L/4.6L

Oxygen gas capacity

682Liter

Outer diameter

111mm

Working pressure

2015psi

Test pressure

3360psi

Weight

3.6kgs

Height

650mm

Standard

DOT3AL (USA standard)

Color

Sliver body with green shoulder

Material

AA6061

Valve

CGA870 / CGA540

Accessories

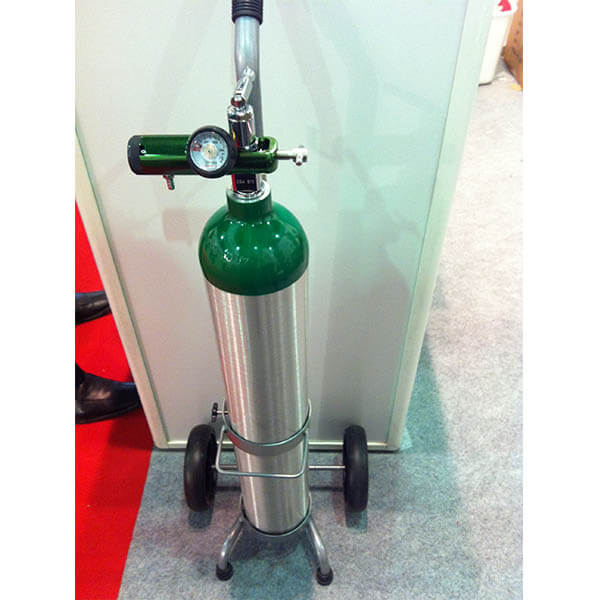

Regulator, humidifier, nasal oxygen cannula, mask, trolley


· State-of-the-art manufacturing facilitates located on the East of China

· All Medical Oxygen cylinders are produced from high quality China sourced raw materials

· On-site DOT (IIA) Inspections – dimensional, visual, hydrostatic, tensile & burst testing

· Serialization – complete traceability of cylinder production batch, test reports and raw material

· Personalized customer support – technical inquiries, new product development, logistics

· Customizable colors, labels and graphics

· All seamless aluminum cylinder design use life is 10 years.

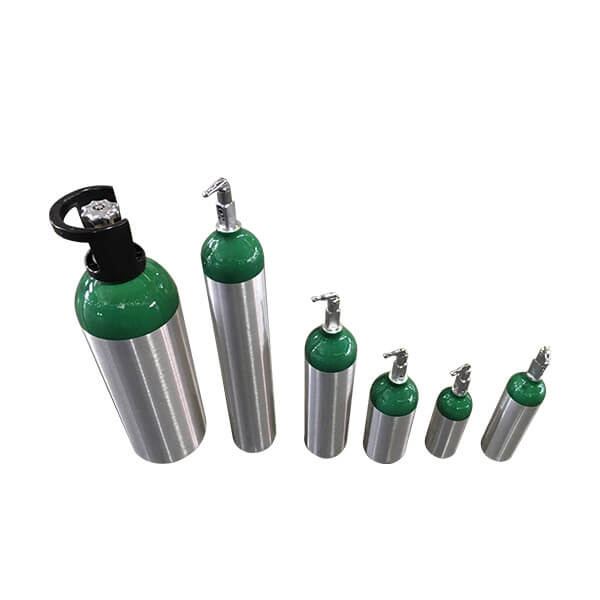

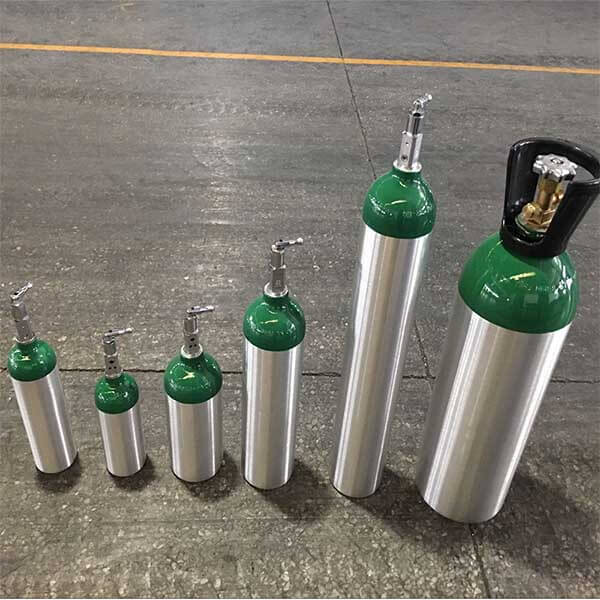

 We can provide the aluminum cylinder size from 0.5L to 21.4L, all the aluminum cylinder can be used for oxygen gas, also co2 gas, helium gas etc.



Our aluminum cylinder produced according to ISO7866 or DOT3AL or EN ISO7866 or TC-3ALM standards, it depends on which country will the aluminum cylinder used in.


DOT3AL standard aluminum cylinder specifications

Size

Diameter

(mm)

Length(mm)

Volume

L/water capacity

Weight

kg

Working pressure

bar/psi

Test pressure

bar/psi

M2

51mm

238mm

0.30L

0.37kg

124bar/1800psi

210bar/3000psi

9oz

54mm

245mm

0.38L

0.38kg

124bar/1800psi

210bar/3000psi

12oz

64mm

245mm

0.51L

0.49kg

124bar/1800psi

210bar/3000psi

M4

81mm

205mm

0.68L

0.72kg

124bar/1800psi

210bar/3000psi

20oz

81mm

245mm

0.85L

0.80kg

124bar/1800psi

210bar/3000psi

47ci

90mm

210mm

0.70L

1.22kg

210bar/3000psi

350bar/5000psi

M6

81mm

295mm

1.00L

1.14kg

155bar/2216psi

260bar/3695psi

ML6

111mm

195mm

1.08L

1.34kg

139bar/2015psi

232bar/3360psi

M9/2.5lbs(co2)

111mm

276mm

1.68L

1.75kg

139bar/2015psi

232bar/3360psi

MD

111mm

423mm

2.75L

2.45kg

139bar/2015psi

232bar/3360psi

M22

133mm

420mm

3.90L

3.3kg

139bar/2015psi

232bar/3360psi

ME

111mm

650mm

4.55L

3.6kg

139bar/2015psi

232bar/3360psi

5lbs(co2)

133mm

369mm

3.34L

3kg

124bar/1800psi

207bar/3000psi

10lbs(co2)

175mm

430mm

6.70L

6kg

124bar/1800psi

207bar/3000psi

M60

184mm

581mm

10.00L

9.8kg

153bar/2216psi

255bar/3695psi

20lbs(co2)

203mm

600mm

13.40L

10.8kg

124bar/1800psi

207bar/3000psi

MM

203mm

907mm

21L

19kg

153bar/2216psi

255bar/3695psi

Welcome contact to communicate more information !



Tracy Chou info@bene.net.cn 0086-021-62700871
