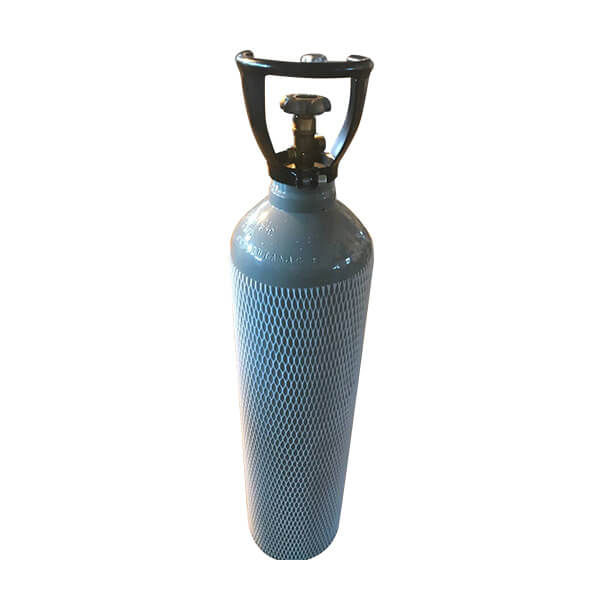

20L seamless steel cylinder specification

Water capacity

20L

gas capacity

4m³

Outer diameter

203mm

Working pressure

200bar

Test pressure

300bar

Weight

23.5kgs

Height

955mm

Standard

ISO9809-1

Color

As different gas color required

Material

34CrMo4

Valve

QF-2/CGA540/CGA580 etc

Accessories

Regulator, trolley.


· State-of-the-art manufacturing facilitates located on the East of China

· All Medical Oxygen cylinders are produced from high quality China sourced raw materials

· On-site ISO Inspections – dimensional, visual, hydrostatic, tensile & burst testing

· Serialization – complete traceability of cylinder production batch, test reports and raw material

· Personalized customer support – technical inquiries, new product development, logistics

· Customizable colors, labels and graphics

· All seamless steel cylinder design use life is 10 years.



We can provide the steel cylinder size from 2L to 80L, all the steel cylinder can be used for oxygen gas, also co2 gas, helium gas, nitrogen gas, argon gas , mix gas etc.



We can provide filling gas services, including N2,Co2,Ar,He,O2,C2H4 etc.

We will provide different gas MSDS document to help arrange shipment work.



Our steel cylinder produced according to ISO9809 or DOT3AA or EN ISO9809 standards, it depends on which country will the steel gas cylinder used in.

Our cylinder with TPED approved with pi mark which exporting to European country only.



EN ISO9809 standard 200BAR working pressure steel cylinder specifications

Diameter

(in/mm)

Length (mm)

Volume(L)

Weight(kgs)

Working Pressure

(Bar)

Test Pressure

(Bar)

Thread

105

320

1.8

3.57

200/216

300/310

W19.8

W28.8

25E

345

2.0

3.75

425

2.7

4.30

470

3.0

4.60

480

3.1

4.68

138

470

5.0

6.7

200/216

300/310

W28.8

25E

500

5.4

7.8

545

6.0

8.4

595

6.7

8.9

660

7.5

9.7

695

8.0

10.1

780

9.1

11.0

800

9.4

11.3

845

10.0

11.8

892

10.7

12.5

850

10.0

17.0

159

420

6.0

10.3

200

300

W28.8

25E

475

7.0

11.5

535

8.0

12.7

650

10.0

15.1

937

18.0

25.4

1029

20.0

27.7

200

570

13.4

21.1

200

315

W28.8

25E

645

15

22.4

815

20

27.4

232

1250

40

55

200

300

W28.8

232

1530

50

65

200

300

W28.8

 We also provide the steel cylinder in 150bar working pressure cylinders,



Welcome contact to communicate more information !
